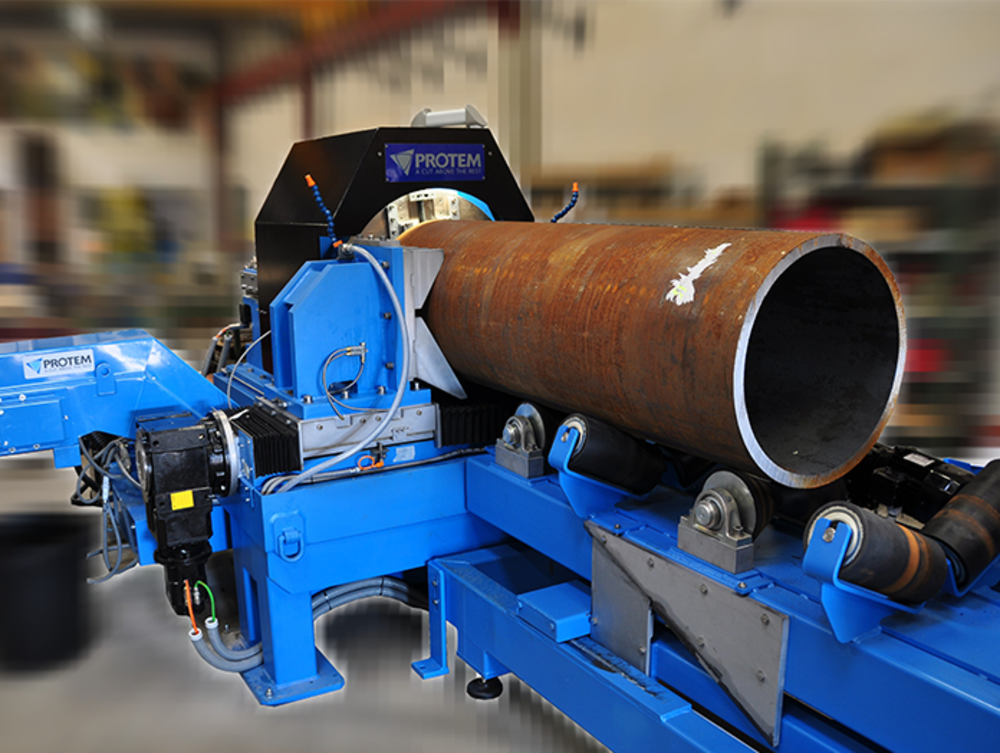

BB Series - High speed pipe beveling machine

BB Series


The electric BB machines can be used either on-site or in the workshop. These heavy duty bevelers will bevel, face and counterbore, individually or
simultaneously, heavy walled pipes.

The BB machines are high speed bench bevelers. If desired, they can be attached to the floor, are easily installed and clamp onto the OD diameter of the tubes and pipes.

They can be easily operated by a sole operator. Used with the optional profile tracking device, they will machine oval pipes, leaving a root face of a consistent width, which is required when using orbital welding processes.

  • BB-1-6 - High Speed Beveling Bench for pipes ranging from 1" to 6’’

    25.4 mm (1.00") ID
    168.3 mm (6.63") OD

  • BB-3-16 - Automatic Bench machine for pipes ranging from 3" to 16’’

    88.9 mm (3.50") ID
    406.4 mm (16.00") OD

  • BB-12-24 - High Speed Beveling Bench for pipes ranging from 12" to 24’’

    304 mm (11.97") ID
    609 mm (23.98") OD

  • BB-24-36 - Automatic Beveling Bench machine for pipes ranging from 24" to 36’’

    609 mm (23.98") ID
    914 mm (35.98") OD

  • BB-36-48 - High Speed Beveling Bench for pipes ranging from 36" to 48’’

    914 mm (35.98") ID
    1219 mm (47.99") OD
