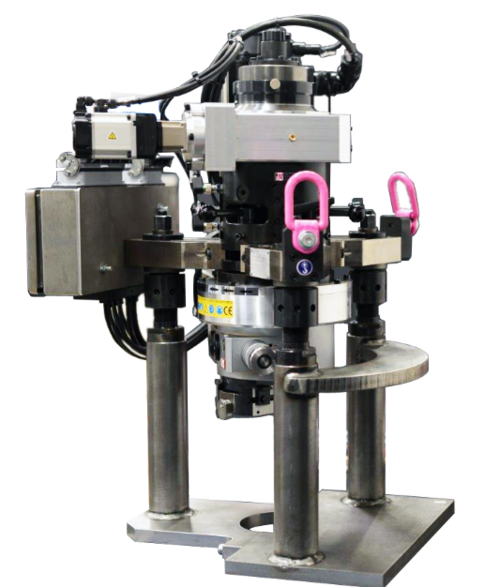

TU600 TE Flange & Valve Facing Equipment. Portable lathes for sealing surfaces, flanges and bores TU600TE

  • TU600 TE Flange & Valve Facing Equipment. Portable lathes for sealing surfaces, flanges and bores
TU600 TE Flange & Valve Facing Equipment. Portable lathes for sealing surfaces, flanges and bores
0 mm (0.00") ID
600 mm (23.62") OD
The SERCO TU machining units are designed for the repair and maintenance of virtually any component: Flanges, Grooves, Safety valves, Sealing surfaces, Hole surfaces, High pressure valves, Bolt extraction, Flat seats, Conical seats, Manholes, Diesel engine repairs, RTJ Grooves etc.Designed on the basis of a standard TU600, the machine is fully automatic and power-driven by brushless motors (rotation and axial and radial feed movements). Its design enables all mechanical play to be eliminated and it performs at high levels of accuracy. The machine is remote-controlled by an axis interpolation technique in to carry out highly complex and varied machining operations in addition to normal boring and facing functions.Conical machining (infinitely ariable angles)Threading (infinitely variable radiusThreading and tapping (Ø and pitch on request)Spiral and concentric fluting (variable pitch and depth)The TU600 TE can carry out numerous machining operations, many of which were impossible with a portable machine until now!

Vidéos

Technical Features

TU600TE
  • 135 mm (5.31")
  • 255 mm (10.04")
  • 600 mm (23.62")
  • 60 mm (2.36")
  • Yes
  • 600 mm (23.62")
Data sheet
Dimensions
Add to Cart

We also propose

  • TU600 Flange & Valve Facing Equipment. Portable lathes for sealing surfaces, flanges and bores

    0 mm (0.00") ID
    600 mm (23.62") OD

  • TU400 TE Flange & Valve Facing Equipment. Portable lathes for sealing surfaces, flanges and bores

    0 mm (0.00") ID
    400 mm (15.75") OD

  • TU1100 TE Flange & Valve Facing Equipment. Portable lathes for sealing surfaces, flanges and bores

    0 mm (0.00") ID
    1100 mm (43.31") OD
