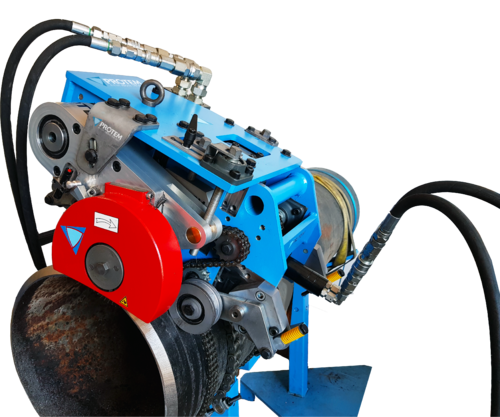

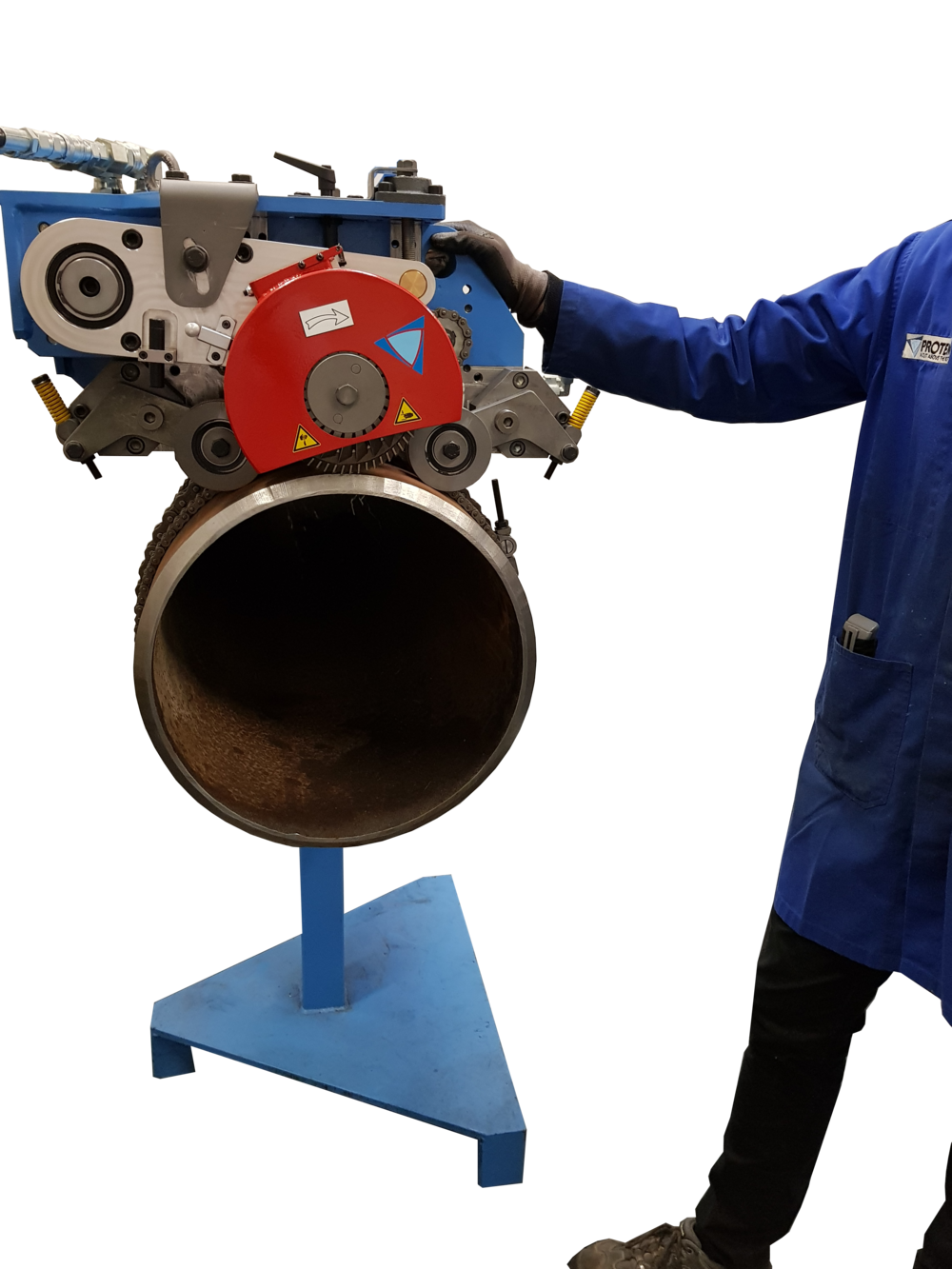

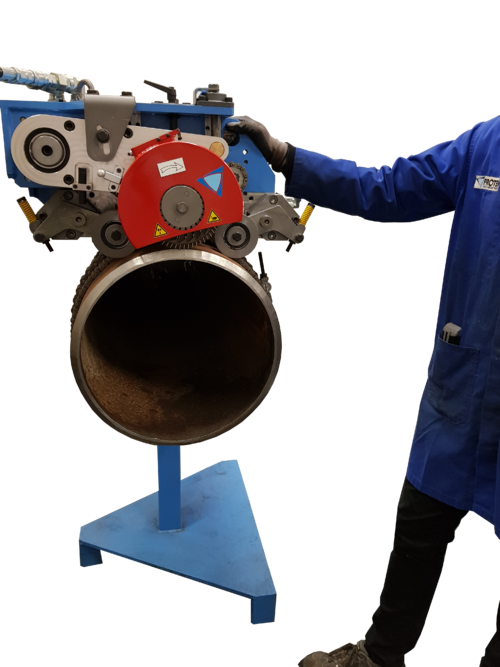

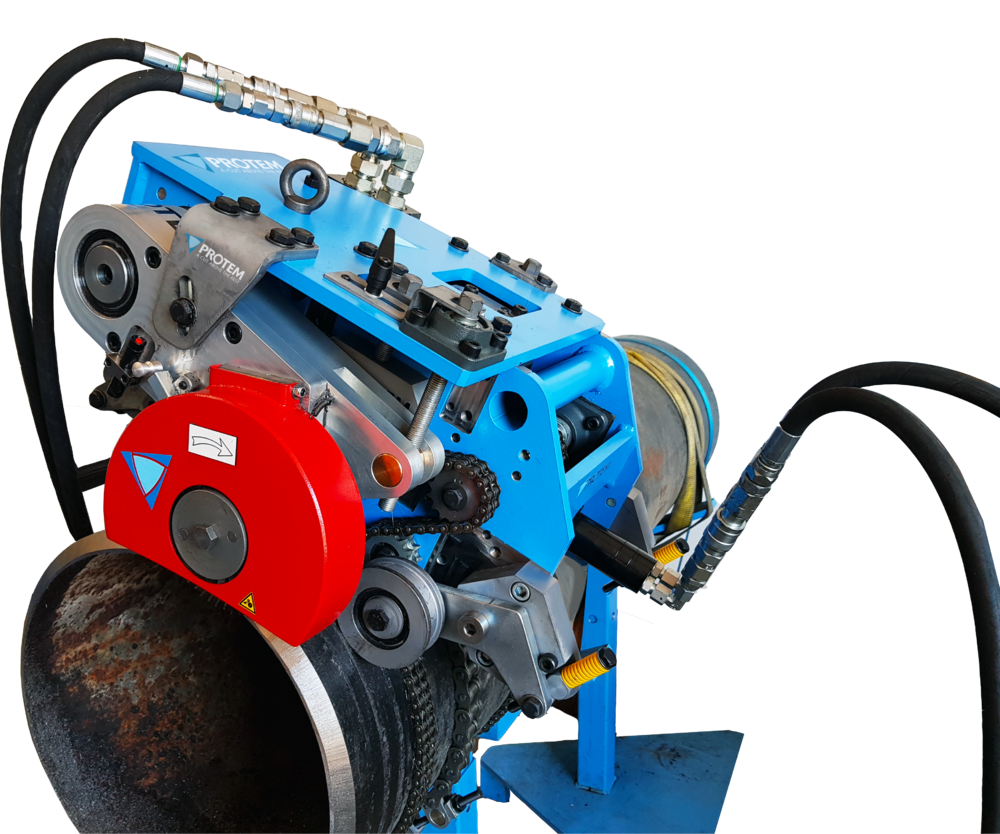

The OCM transportable Orbital Pipe Cutting Machine is designed for cutting and beveling pipes with diameters starting from 6,732" OD (Ø168.3 mm OD) minimum and for wall thicknesses up to 2,032" (50.8 mm).
Its independent beveling module is entirely adjustable and performs bevels from 0° to 90° without changing accessories. The OD Mount Pipe Cutting and Beveling OCM is designed to be easy to use. Robust and dependable, it can be used on-field, in the workshop or in demanding environments under extremely extreme conditions. The extension chains allow to clamp the OCM onto large diameter pipes.
Designed for all types of materials:
Mild steel, carbon steel, chromium, stainless steel, duplex, super duplex,
copper-nickel alloys, inconel, P91, aluminum, exotic alloys etc.
Various motorization options are available:
Hydraulic or pneumatic
The OCM Pipe Cutting Machine is the essential complement for all your welding preparation works.
• Transportable Machining Equipment (OD Mount)
• Cutting and beveling modules available
• Perfect weld end preparation
• Bevel Shapes : I and V bevels from 0 to 90°
• For construction, maintenance, repair and dismantling of tubular components
• On-site or in the workshop
• No heat-affected zone
From 6,732" OD (168.3mm). For wall thicknesses up to 2,032" (50.8 mm).
The basic chains allow to cover pipe diameters up to 52" OD (1300 mm OD).
Optional extension chains allow to cover the full range of standard pipes.
Beveling can be performed on wall thicknesses up to 2,032" (50.8 mm) in a few passes.
Its adjustable module can bevel the required inclination, whatever it may be.
